woodtec Fankhauser GmbH

Maschinentechnik für den Holzbau

Assembly Table

The Modular Prefab Table for Timber Frame Prefabrication

Download Documentation
Watch Product Video

One Simple Equation:

Edge Stops + Base Modules + Height Extensions

=

Your Personal Assembly Table

The layout can be adapted anytime to changing needs and circumstances. With increasing work load, more modules can be added.

Features

Every production step can be optimized with the available accessories.
Accessories Documentation
  • Assembly
  • Fastening
  • Sheathing
  • Formatting
Quick-Release Stop
Table Separation
Flexible Edge Stop
Edge Stop Plate
Integrate Tape Measure
Big Pneumatic Pressor
Fast-Clamp
Vertical Clamp
Small Pneumatic Pressor
Foil Cart
Laser Marker
Panel Edge Stop
Vacuum Lifter
Extraction System
Panel Router

Versions

Not only flexible dimensions but also different operational versions
  • Modular Version
  • Prefab Platform
  • Hydraulic Tilt Base
  • Pivot Base

An Even
Work Station


Each module has two steel profiles with two leveling feet each. This ensures perfect planarity of the work surface and of your frames

nivellierfussunterbau-poster

Ideally Subdivided Work Surface

  1. Optimize Capacity
  2. Distribute Workforce more Efficiently
  3. Safe Space
Download Documentation

Lift Heavy Frames without Distortion


  1. In case of heavy frames
  2. Where no overhead crane is available
  3. Assemble dormers in the final inclination
hydraulikunterbau-poster

Reinforced Base on Hinges

Quickly store away the table by leaning it against the wall and free up work space

aufklappvorrichtung-poster

User Cases

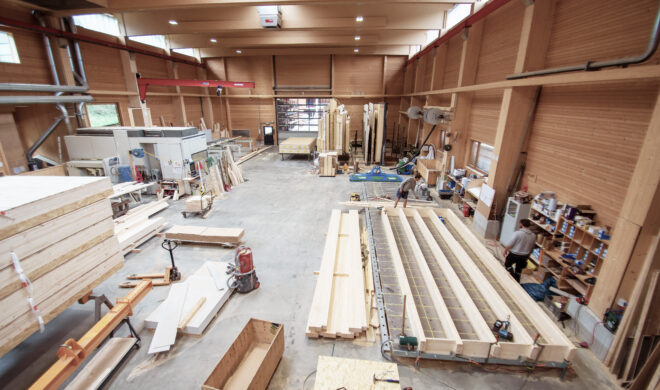

Lengauer-Stockner GmbH

Lengauer-Stockner GmbH

Instead of delivering CLT to the construction site, as much as possible is now prefabricated in the hall, thanks to their assembly table and joinery system,

More info
Gauye & Dayer SA

Gauye & Dayer SA

Assembly Tables, Panel Router, Pressing System, Vacuum Press: The complete equipment from woodtec for Timber Frame, CLT and Box Girders.

More info

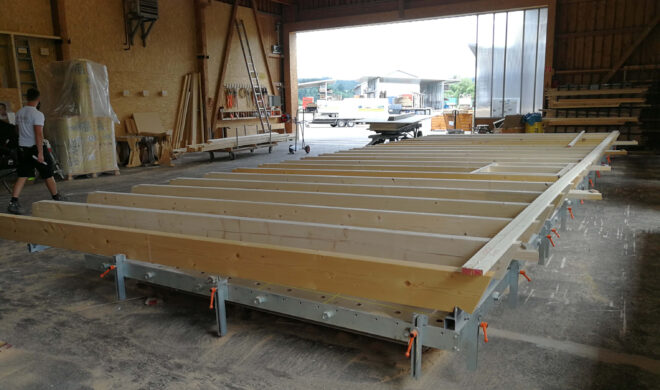

Fuchs Holzbaulösungen

Fuchs Holzbaulösungen

Two assembly tables in two buildings for prefabricating personalized single family homes. The whole roofs are laid out before cutting them into transportable units.

More info
Gaille Constructions SA

Gaille Constructions SA

Separate Prefabrication of Wall Frames and Roof & Floor Cassettes in two buildings, with dedicated equipment from woodtec. Essentially for building single-family homes.

More info
Hubert Constructions Bois SA

Hubert Constructions Bois SA

Separate assembly tables for first and second side processing. Arrangement in a line so that the tables can be connected to one single table for longer frames.

More info
Schäfer Holzbautechnik AG

Schäfer Holzbautechnik AG

Assembly Platforms on the left and right sides of the plant, with space for material and transportation in the middle. The table and plant layout is optimized for each bigger project.

More info
Künzli Holz AG

Künzli Holz AG

Work platform of 36 m length that can be divided in individual work stations, optimized for every project.

More info
Beer Holzbau AG

Beer Holzbau AG

This 42 m long assembly platform is divided into multiple work stations, organically to suite the project and optimize the space. One area is usually equipped for box girder manufacture.

More info
Lengauer-Stockner GmbH
Gauye & Dayer SA
Fuchs Holzbaulösungen
Gaille Constructions SA
Hubert Constructions Bois SA
Schäfer Holzbautechnik AG
Künzli Holz AG
Beer Holzbau AG
IN

31COUNTRYS

WE COUNT

445SATISFIED CLIENTS

TOTAL OF

4’146METER ASSEMBLY TABLE

You might also like

Flip Over Frame

With the Handling Crane’s additional Turn-Over and Transport Module.

Panel Router

Dustless and efficient formatting of the frame’s sheathing

Handling Crane Pro

Position sheathing efficiently thanks to smart functions

Roof & Floor

Additional Equipment for Roofs and Floor Cassettes

Pneumatic Pressing

Glue and press Box Girders and Ribbed Slabs

Vacuum Lifter

High-performance Suction Plates for porous material like OSB. With active ventilation.

The Vision of Its Developers:

An assembly table should stay precise over years and be upgradeable with new accessories. It truly is the core of timber prefabrication.

Thomas Fankhauser | Carpenter & Designer of the woodtec assembly table

There’s no reason to go into full scale automation in timber frame prefabrication. But every process should be optimized so that operators can develop their full potential.

Benjamin Fankhauser | Robotics & Autonomous Systems Engineer
